Description

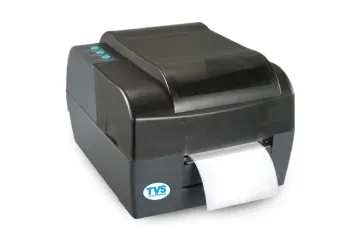

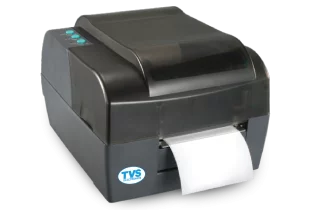

The TVS LP-45 4" Desktop Barcode Label Printer is a powerful and reliable solution designed for manufacturing, retail, logistics, textile, and garment industries. Featuring dual printing technology – Direct Thermal & Thermal Transfer, it delivers sharp 203 DPI resolution for barcode labels, stickers, tags, and more. With a maximum print speed of 125 mm/s, this printer enhances productivity, while RS-232 Serial, CENTRONICS Parallel, and USB connectivity ensure seamless integration. Ideal for businesses requiring high-quality, efficient, and durable printing solutions.
Product Features
- High-Resolution Printing: 203 DPI ensures clear and sharp barcode and label printing.
- Dual Printing Technology: Supports Direct Thermal & Thermal Transfer for versatile printing needs.
- Fast Performance: Prints at 125 mm/s, making it ideal for high-volume tasks.
- Advanced CPU & Memory: 32-bit RISC microprocessor with 8MB FLASH RAM and 64MB SDRAM for smooth operation.
- Multiple Detection Systems: THP temperature, position detection, paper mark, and ribbon detection ensure accuracy.
- Versatile Barcode Support: Prints 1D and 2D barcodes, including QR codes, PDF417, and Maxicode.
- Wide Paper Compatibility: Supports continuous, label, marked, and perforated paper up to 104mm width.
- Flexible Connectivity Options: RS-232 Serial, Parallel, and USB ports for easy integration.
- Energy Efficient: Operates on AC 110-240V, 50/60Hz input with DC 24V output.
- Durable & Reliable: 30km print life or 12-month warranty, ensuring long-lasting performance.
Product Specifications
| Resolution | 203 DPI |
| Printing Method | Direct Thermal & Thermal Transfer |
| Max. Print Width | 104 mm |
| Max. Print Speed | 125 mm/s |
| CPU | 32-bit RISC microprocessor |
| Memory | 8MB FLASH RAM, 64MB SDRAM |
| Detection | THP temp, position, paper mark, ribbon |
| Barcode Support | 1D: Code 39, UPC, EAN, Code 128, etc. , 2D: QR Code, PDF417, Maxicode, etc. |
| Font Support | ASD smooth fonts, Courier fonts, user-defined fonts |
| Graphics | Supports HEX, PCX, BMP, IMG formats |
| Paper Type | Continuous, label, marked, perforated paper |
| Max. Paper Roll O/D | 127 mm |
| Max. Ribbon Length | 300 m |
| Interface | RS-232 Serial, Parallel, USB |
| Power Supply | AC 110-240V, 50/60Hz; DC 24V output |
| Operating Temp. | +5°C to 45°C, 20%-90% humidity |
| Storage Temp. | -40°C to 60°C, 20%-93% humidity |
| Dimensions | 300mm (L) × 252mm (W) × 190mm (H) |
| Weight | 3.5 kg |
| Reliability | 30 km print life or 12 months |
