Description

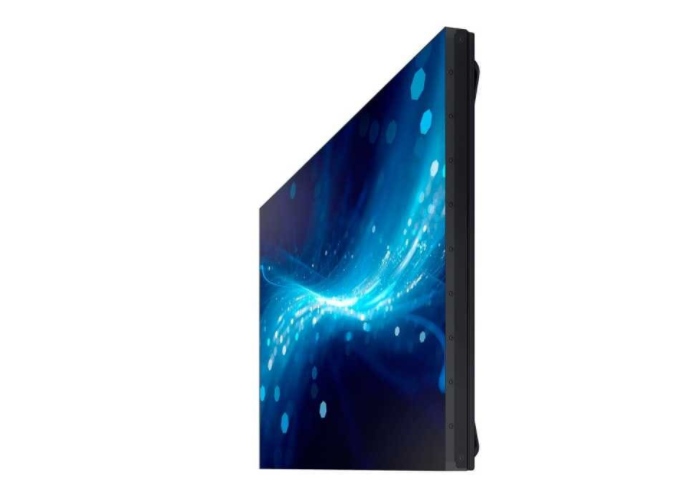

SAMSUNG UH55F-E 55IN ULTRA NARROW BAZEL VIDEOWALL DISPLAY
Super Ultra Thin Bezel Video Wall panel with 1.7mm bezel-to-bezel - 700 nits brightness/ 25% HAZE Non Glare Panel.
- Ultra-narrow bezels at 1.7mm bezel-to-bezel allow you to create virtually seamless videowalls
- Non-glare, high brightness panel offers improved visibility in bright ambient light
- Reliable 24/7 continuous run-time to meet around the clock business operating requirements
- Factory calibrated for uniform brightness and color across multiple displays
SPECIFICATIONS :
Display | |
Screen Size | 55" |
Panel Technology | D-LED DID |
Resolution | 1920x1080 |
Aspect Ratio | 16:9 |
Brightness | 700nit |
Contrast Ratio (Typical) | 4000:1 |
Viewing Angle (H/V) | 178º/178º |
Response Time | 8ms |
Connectivity | |
Input | RGB: DVI-D, Display Port 1.2 |
Output | AUDIO: Stereo Mini Jack |
External Control | RS232C(in/out), RJ45 |
Sensor | Detachable Type(IR) |
Power | |
Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
Power Consumption (Standby) | less than 0.5W |
Environmental Conditions | |
Operating Temperature | 0℃~ 40℃ |
Operating Humidity | 10~80% |
Features | |
Special | ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 11%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Videowall(15x15(OSD)), Videowall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping) |
Media Player Type | Cortex-A9 1GHz Quad Core CPU, 1.5GB DDR3, 8GB FDM, USB 2.0, Samsung Proprietary OS (VDLinux) |
Plug & Play | Yes |
24/7 Operation | Yes |
Videowall/Thin Bezel | Yes |
Dimensions | |
Without Stand (W x H x D) | 40.3" x 22.7" x 1.8" |
Packaging (W x H x D) | 46.1" x 28.8" x 10.9" |
Bezel Width | 0.13" (U/L), 0.08" (R/B) |
Weight | |
Product Weight | 29.1 lbs. |
Package Weight | 42.3 lbs. |
Service | |
Standard Warranty | 3yr Onsite (Parts/Labor/Backlight) |
Included in Box | |
Included in Box | Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries |
Optional Wall Mounting Kit | WMN-46VD |
Optional Stand | SBB-DA / SBB-DI / SBB-SS08E |
Optional Media Player | SBB-DA / SBB-SS08E |
Green Management | |
ROHS Compliant | Yes |
Emission Standard | EMC |
Packaging Recyclability | Packing Materials Recyclable |
Mechanical Specs | |
VESA Mount | 400x400 (mm) |
