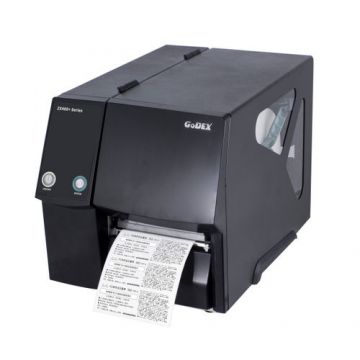

Godex ZX420+ - Industrial Label Printer - Thermal Transfer & Direct Thermal - 203 DPI

The Godex ZX420+ is a high-performance industrial barcode printer, purpose-built for heavy-duty applications that demand wide-format labels, superior durability, and high-resolution print quality. Featuring a 3.2” color touchscreen, robust metal casing, and advanced print mechanism, this printer is ideal for logistics, manufacturing, warehousing, and more.

The HD830i boasts a maximum print width of 4.25 inches and delivers stunning clarity with a 203 dpi resolution, perfect for large shipping labels, pallet tags, and industrial-grade marking. With adaptive dampening technology, reflective and transmissive sensors, and an included 10” external label stand, it offers unmatched versatility and consistent output even in demanding environments.

Product Features

• Model: ZX420+

• Print Method: Thermal Transfer / Direct Thermal

• Print Resolution: 203 dpi (8 dots/mm) / 300 dpi (12 dots/mm)

• Print Speed:

  • Up to 6 ips (152 mm/s)

• Print Width:

  • Max 4.25” (108 mm)

• Print Length:

  • Min 0.12” (3 mm)

  • Max 279.53” (7100 mm)

• Media Type:

  • Continuous form, gap labels, black mark sensing, and punched hole

  • Label length set by auto sensing or programming

• Media Width:

  • Min 1” (25.4 mm) – Max 4.33” (110 mm)

• Label Roll Diameter:

  • Max 8” (203.2 mm) with a 3" core

  • Max 6” (152.4 mm) with a 1.5" core

  • Max 5” (127 mm) with a 1" core

• Ribbon Roll Diameter:

  • Max 3” (76.2 mm)

• Ribbon Type:

  • Wax, Wax/Resin, Resin

• Ribbon Length:

  • Max 1476’ (450 m)

• Label Thickness:

  • Min 0.0024” (0.06 mm) – Max 0.01” (0.25 mm)

Performance:

• Print Speed:

  • Up to 6 ips (152 mm/s) for high-speed operation.

• Processor:

  • 32-bit RISC CPU

• Memory:

  • 128 MB SDRAM

  • 128 MB Flash Memory

Sensors:

• Sensor Type:

  • Adjustable reflective sensor and transmissive sensor (left aligned)

Connectivity & Interfaces:

• USB 2.0 (Type B)

• USB Host (Type A)

Software Compatibility:

• Operating Systems Supported:

  • Windows (7, 8, 8.1, 10, 11), Windows Server (2008 R2, 2012, 2016, 2019, 2022), Mac, Linux

  • Android, iOS (for mobile integration)

• Printer Language:

  • EZPL, GEPL, GZPL, GDPL (Auto-switching)

• Software Tools:

  • GoLabel II (Windows) for label design (EZPL only)

  • GoTools (Windows / Android / iOS) for printer management

  • GoUtility (Windows) for monitoring and management

  • GoAPP (Android / iOS) for mobile application

Font Support:

• Resident Fonts:

  • Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16x26

  • OCR A & B

  • TrueType Fonts (TTF):

    • Internal fonts include Traditional Chinese, Simplified Chinese, Japanese, Korean, and Western languages.

  • Fonts are rotatable at 0°, 90°, 180°, 270° and expandable up to 8 times in horizontal and vertical directions.

Barcodes Supported:

• 1D Barcodes:

  • Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, and more

• 2D Barcodes:

  • QR Code, PDF417, DataMatrix, Aztec, MaxiCode, Micro PDF417, Micro QR Code, and more

• Other Supported Codes:

  • Codabar, Codablock F, Aztec code, Telepen, and several other formats.
