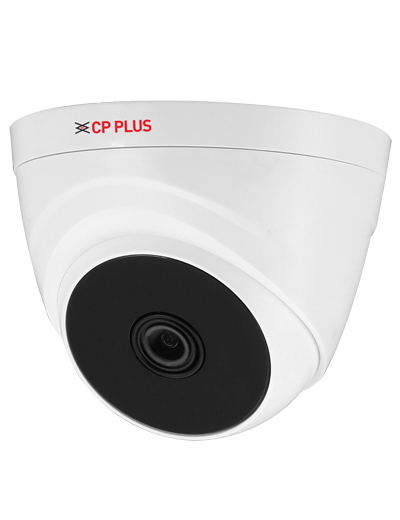

CP Plus CP-USC-DC10PL2-V2-0360 Dome IR Camera - 720p/1MP, 3.6mm Lens, 20m IR Range

[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +91 92050 81551
CP-USC-DC10PL2-V2-0360

Need Help

Choosing a Product
+91 92050 81551 Live Chat Email Us
Talk to our technical Expert
price match

Description

Introducing the CP Plus CP-USC-DC10PL2-V2-0360 Dome IR Camera, a revolutionary analog surveillance solution by CP PLUS. This advanced camera combines cost-efficiency and simplicity with high-quality performance to enhance your security needs. This camera's IR LEDs provide detailed images even in low light, while True Day/Night (ICR) technology ensures clear imaging in dark environments. With UNI+ technology, CP PLUS Analog HD cameras offer compatibility across all available technologies, making it easy to upgrade.

Feature:

  • High-Resolution Clarity: Capture detailed images with the 1MP Full HD IR Dome Camera's 1/4.5'' 1MP PS CMOS Image Sensor.
  • Smooth Video Streaming: Enjoy real-time video at 30fps in 720P resolution for seamless monitoring.
  • Day and Night Performance: Equipped with DWDR and Day/Night(ICR) features, ensuring optimal image quality in varying lighting conditions.
  • Smart IR Technology: Benefit from an IR range of 20 meters and Smart IR functionality for clear night vision without overexposure.
  • Wide-Angle Coverage: The 2.8 mm fixed lens provides a wide field of view, minimizing blind spots in the surveillance area.
  • Intelligent Image Enhancement: Experience improved image clarity with 2D-DNR, AWB, AGC, and BLC features for better surveillance outcomes.

Specification:

Image Sensor1/4.5'', 1MP PS CMOS Image Sensor (0.5644 centimeters)
Lens2.8mm
Max ApertureF2.3
Mount TypeM12
Angle of ViewHorizontal: 82°, Vertical: 45°, Diagonal: 95° (using 2.8 mm lens)
Minimum Illumination0.04Lux/F2.3, 30 IRE, 0 Lux IR on
Shutter SpeedPAL: 1/25~1/100000s ; NTSC: 1/30~1/100000s
White BalanceAuto / Manual
Gain Control (AGC)Auto / Manual
ICRAuto (ICR)/Manual
Back Light CompensationBLC/ DWDR
Video Streaming25/30fps@720P
Video OutputCVI/TVI/AHD/CVBS by one BNC port
IRIR Range of 20 Mtr., Smart IR
OSDN/A
CasingPlastic
Operating Temperature-40 °C to +60 °C (-40 °F to 140 °F); < 95% (non-condensation)
Power Source12V DC ±30%
Power ConsumptionMax 1.9 W (12 V DC, IR on)
Weatherproof StandardN/A
DORI Distance2.8 mm: detect 49.3m observe 19.7m Recognize 9.9m Identify 4.9m
S/N RatioMore than 65dB
Dimension85.4 mm × 68.8 mm
Weight0.09Kg

Features

Manufacturer:
CP PLUS
